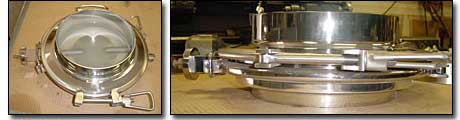

Process Solutions
offers
CO.RA. ®
style sanitary butterfly valves for powder
handling. |
|
|
|
Materials of
construction: Stainless Steel (T-304/T-316L), Steel,
Polyethylene, C-276 (Hastelloy ©) |
|
|
|
There are three
types of valves: |
|
|
|
Standard disk
valve: |
 |
|
|
-
T-316
stainless steel construction on the vane and valve body
-
Silicone
gasket (alternative materials available - Teflon, EPDM,
Buna, Etc.)
-
PTFE bushings
-
Available
with a manual handle or actuated (pneumatic or electric)
-
Standard
finish: internal #7 polish, external satin finish
|
|
|
|
|
|
|
|
Rotary disk valve: |
 |
|
|
-
T-316 stainless
steel construction on the vane and valve body
-
Silicone gasket
(alternative materials available - Teflon, EPDM, Buna, Etc.)
-
PTFE bushings
Available with a manual handle or actuated (pneumatic or
electric)
-
Standard finish:
internal #7 polish, external satin finish
|
|
|
|
|
|
|
|
Flexible disk
valve: |
 |
|
|
|
|
|
|
-
T-316 stainless
steel construction on the valve body
-
Silicone
construction on the vane (stainless steel reinforced)
-
Silicone gasket
(alternative materials available - Teflon, EPDM, Buna, Etc.)
-
PTFE bushings
-
Available with a
manual handle or actuated (pneumatic or electric)
-
Standard finish: internal
#7 polish, external satin finish
|
|
Options on the
valves: |
|
|
|
|
|
|
-
#7 polish on the
external surface of the valve
-
Wafer
configuration so that the valve is always closed
-
Control panel
for actuation
-
Special fittings
for the inlet/outlet
|
|
Additionally, the
valves come in six body styles: |
|
|
|
|
|
|
Clamp
Plain |
Clamp
Single |
Clamp
Double |
| |
|
|
Bolt
Plain |
Bolt
Single |
Bolt
Double |
|
|
|
|
|
|
|
|
Clamp together
body with plain ends |
[clamp plain] |
|
Clamp together
body with a quick release flange end |
[clamp single] |
|
Clamp together
with quick-release |
[clamp double] |
|
|
|
|
Clamp together
with plain ends |
[bolt plain] |
|
Clamp together
with a quick-release flange end |
[bolt single] |
|
Bolt together
body with quick release |
[bolt double] |
|
|
|
|
|
|
|
|
In addition to the
valves, Process Solutions offers some ancillary products: |
|
|
|
|
|
|
-
Silicone
flexible hose from 1" to 16" diameter
-
Y-branch
discharge stations
-
Silicone caps
from 4" to 16"
-
Air purge
cleaning systems for transition pieces between two valves
-
Automated and
semi-automated control systems for the valves
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
